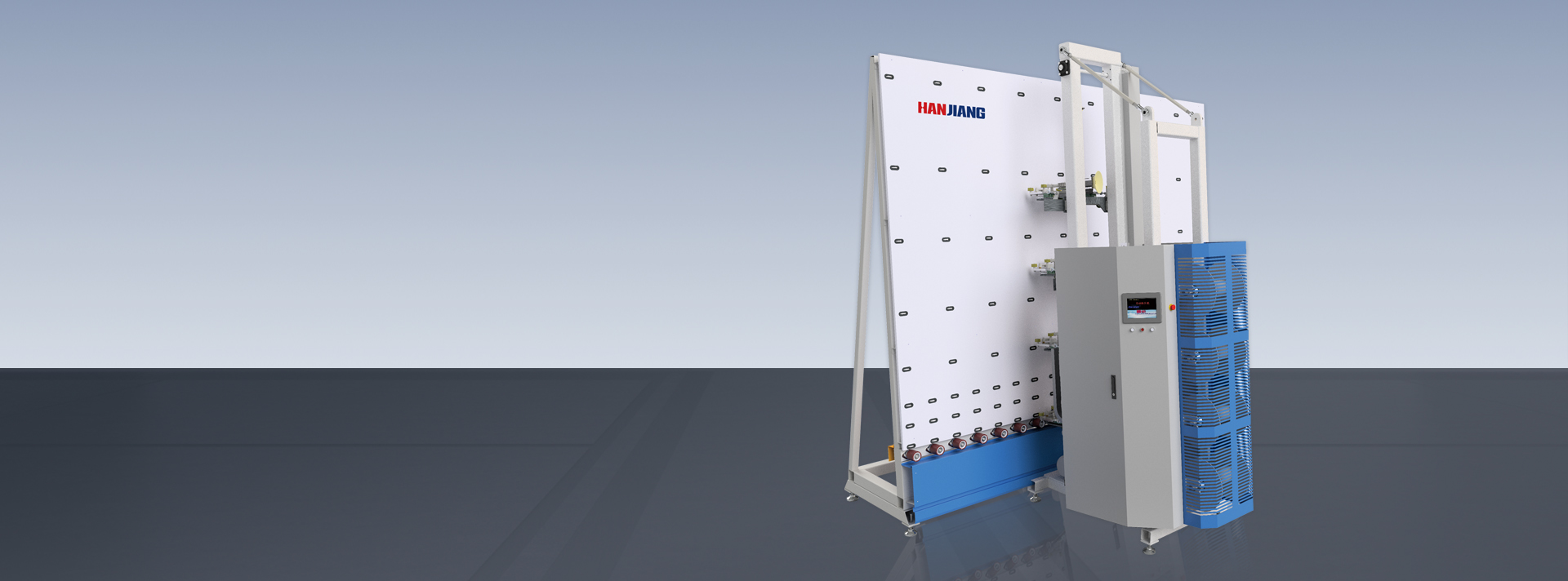

Product Introduction

Feature

  • PLC control system with touch screen interface
  • Automatic measuring glass height
  • Cork pad can be pasted as per setted intervals on touch screen
  • Manual operation and fault diagnosis are available on touch screen
  • Applicable to the different thickness of insulating glass
  • Automatic alarm function as cork pad run out
  • Remote communication function (*option)

Technical Data

  • Conveying speed：0-35m/min
  • Insulating glass thickness：12-60mm
  • Minimum size of glass：300×600mm
  • Maximum size of glass：2500×3000mm(2000×2500)
  • Air source：0.8m3/min
  • Air pressure：1MPa
  • Power：3P、380V/1P+N、220V、50Hz、2KW
  • Machine Size：1200(L)×1000(W)×3200(H)mm
VIDEO OF AUTOMATIC ARGON GAS FILLING IG LINE
