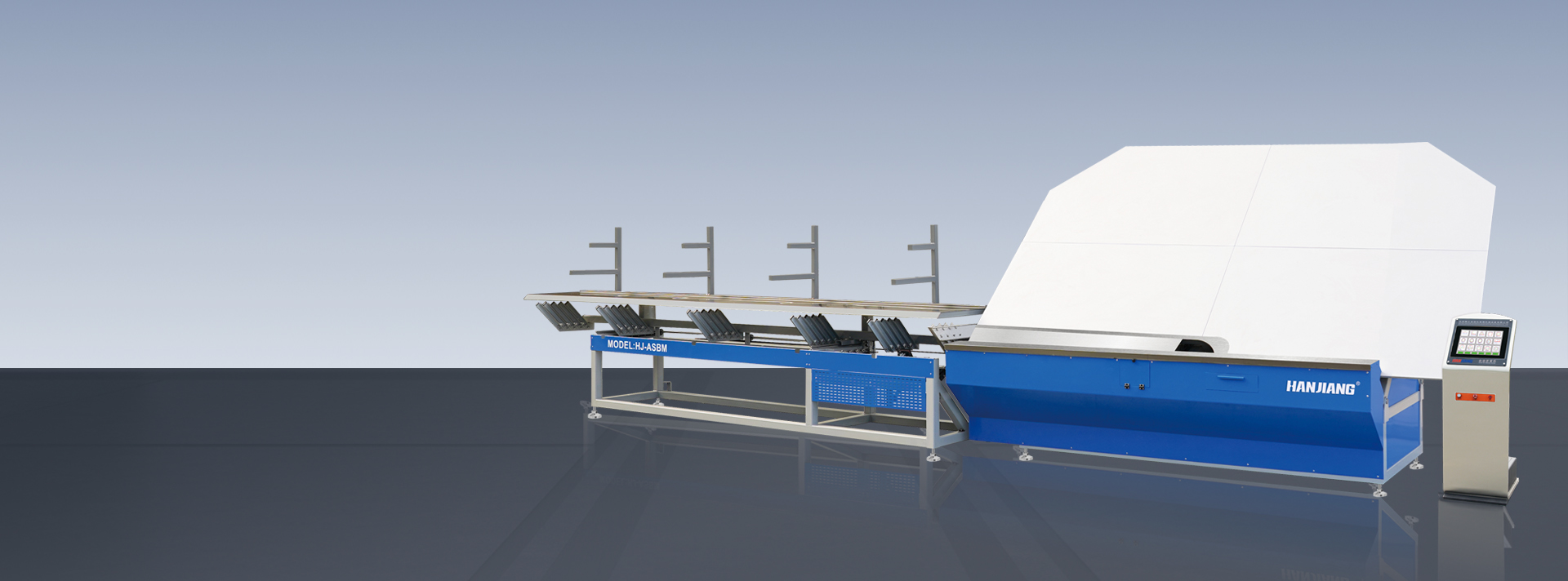

Product Introduction

Feature

  • PLC control system with touch screen interface, the parameter setting is fast and convenient
  • Servo motors control feeding and bending
  • The 4 profile magazines for 4 different specifications of spacers
  • Automatically avoid connectors between spacers when cutting and bending
  • 15 shapes available
  • Special option for stainless steel spacer (*option)
  • Processing of Swisspacer (*option)
  • Connecting with the ink printer (*option)
  • With remote communication function (*option)

Technical Data

  • Spacer width：6-24mm
  • Bending size：Max: 2000×2000mm　Min: 250×250mm
  • Feeding speed：0-90m/min
  • Linear dimension error：≤±0.3mm/m
  • Angle error：±0.5°
  • Power：3P380V/1P+N 220V 50Hz 5kW
  • Air pressure：0.7MPa
  • Machine size：10000(L) × 2200(W) × 2600(H)mm
VIDEO OF AUTOMATIC ARGON GAS FILLING IG LINE
